GENERAL:
For unmatched efficiency and reliability power, mosfets employs in these Power supplies . These units are specially designed for Electromangets and for similar equipment. The control circuit is assembled on a glass epoxy PCB. The design is based on latest LC.'s and components, these are highly regulated current sources.
FEATURES:
- Builtin Spikes, Surge and Noise Suppressor
- Electronic overload protection and short Circuiting protection.
- High Regulation
- Continuously variable current
- Very Low Ripples
- Ad!ance MOSFET Technology
SPECIFICATIONS:
- INPUT : 220V 10% 50 Hz, single phase
- OUTPUT :
- MODEL: CC- 100 : 0 - 6 Amp (suitable for electromagnet EMH-100)
- MODEL: CC- 75 : 0 - 5 Amp (suitable for electromagnet EMU-75/ EMH- 74
- MODEL: CC- 50 : 0 - 4 Amp (suitable for electromagnet EHU-50)
- MODEL: CC- 35 : 0 - 3 Amp ( suitable for electromagnet EMU-35)
- STABILIZATION : Better than 0.1% for 10% changes in mains
- LOAD REGULATION : Better than 0.1% for no loads to full load
- METERING : 3 1/2 digits digital current meter mounted on front oanel to read output
- PROTECTION : The unitis fully protected against overloading and shortcircuiting.

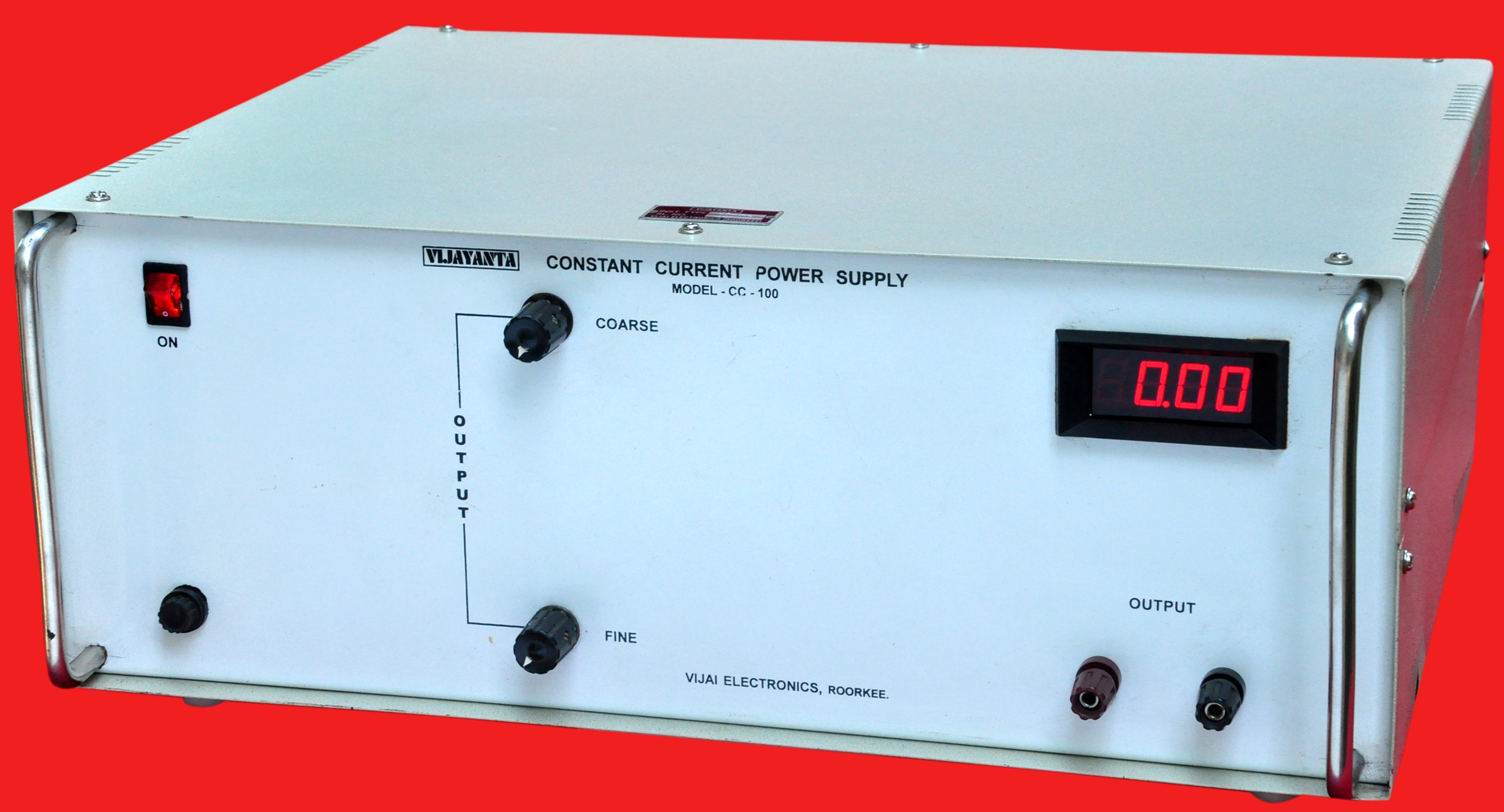

- MODEL : CC-100

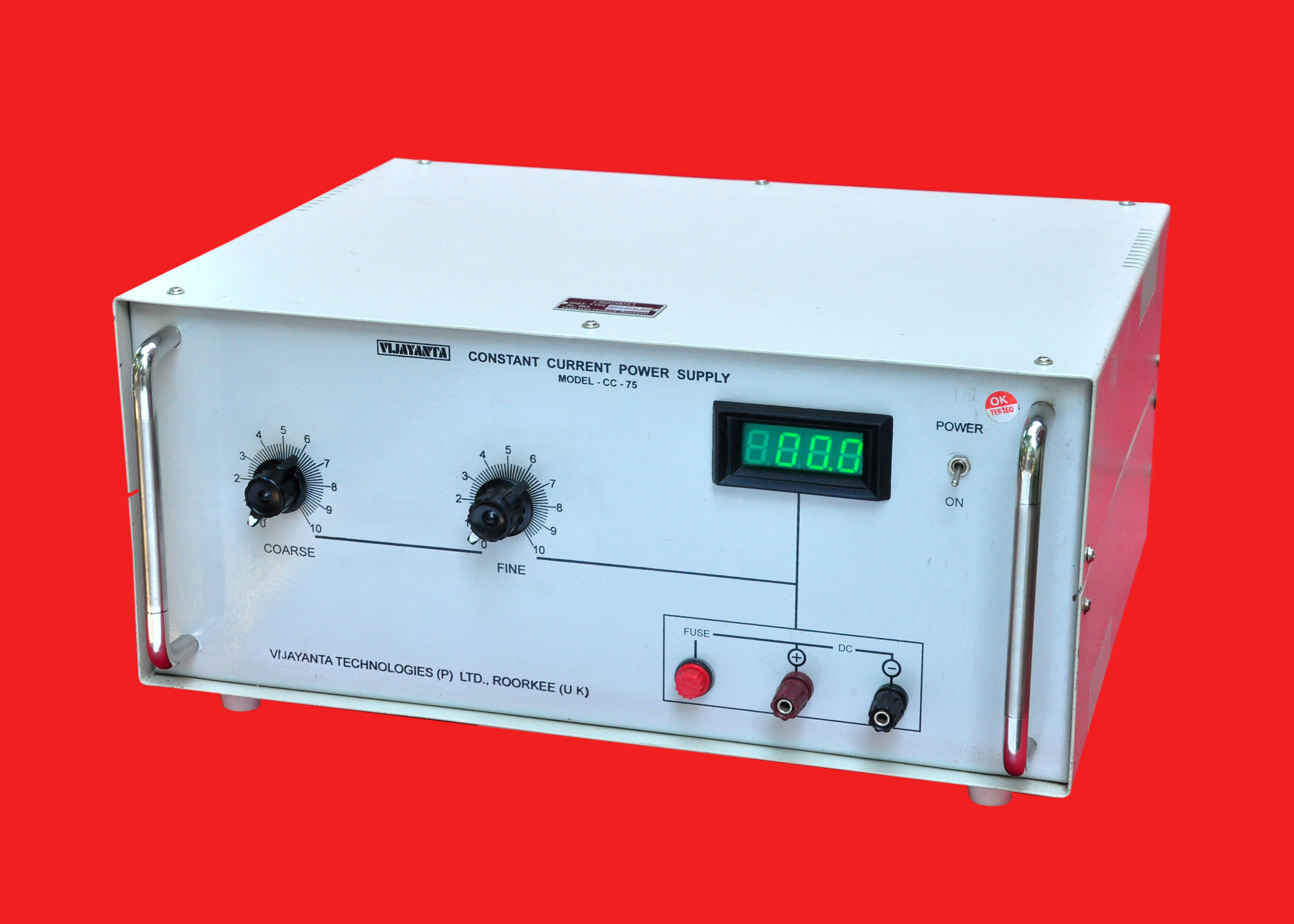

-MODEL: CC-75

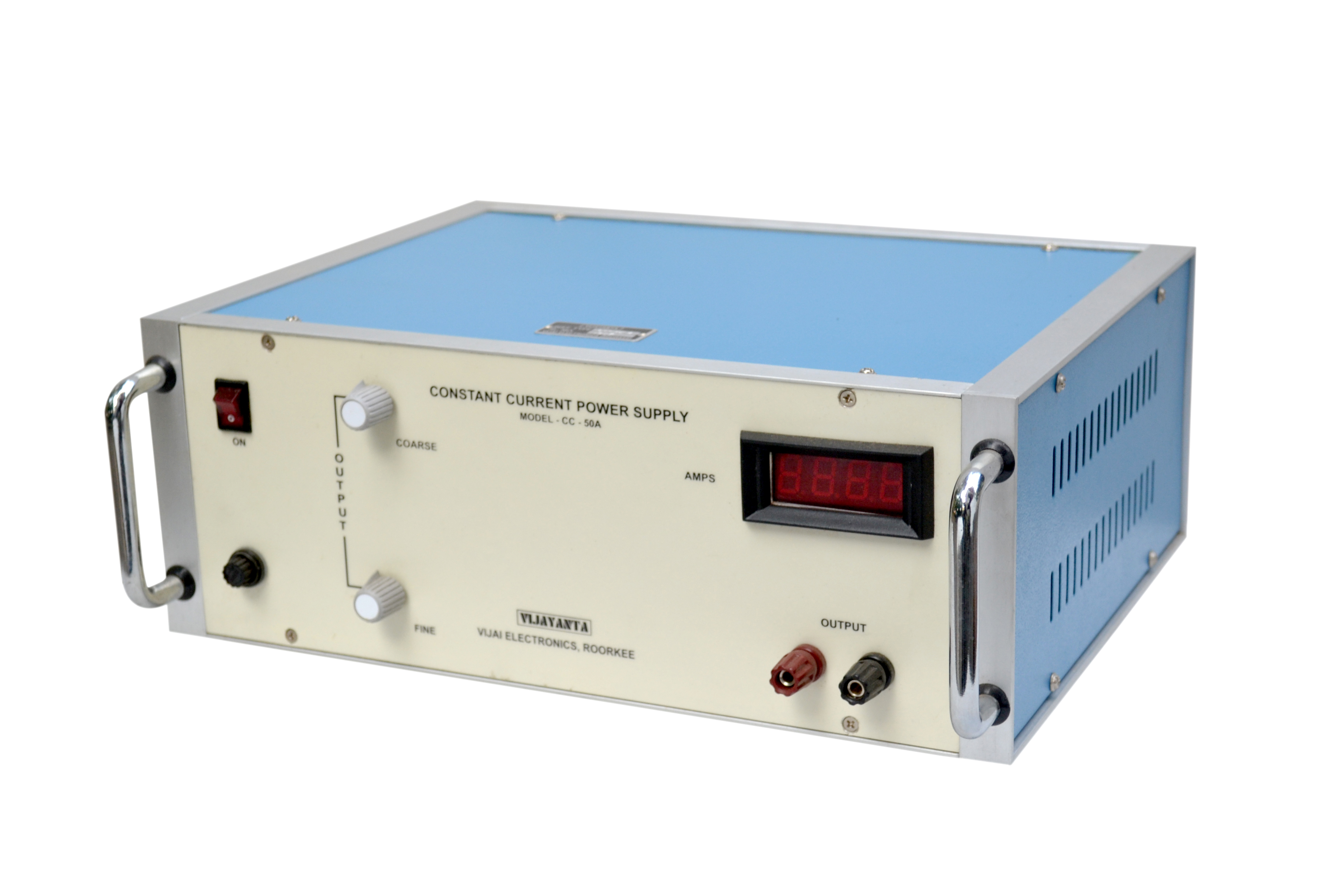

-MODEL: CC-50

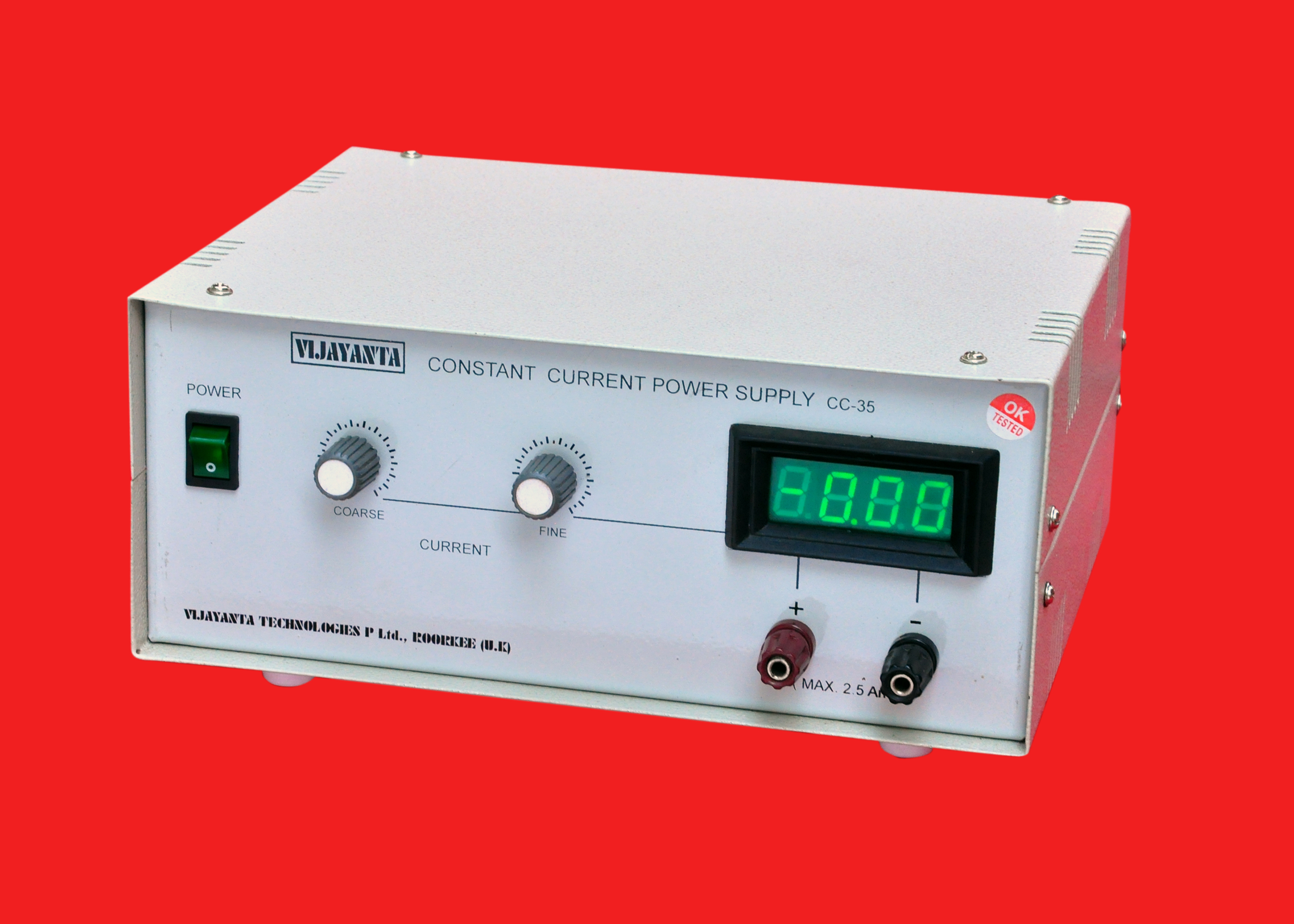

- MODEL: CC-35
