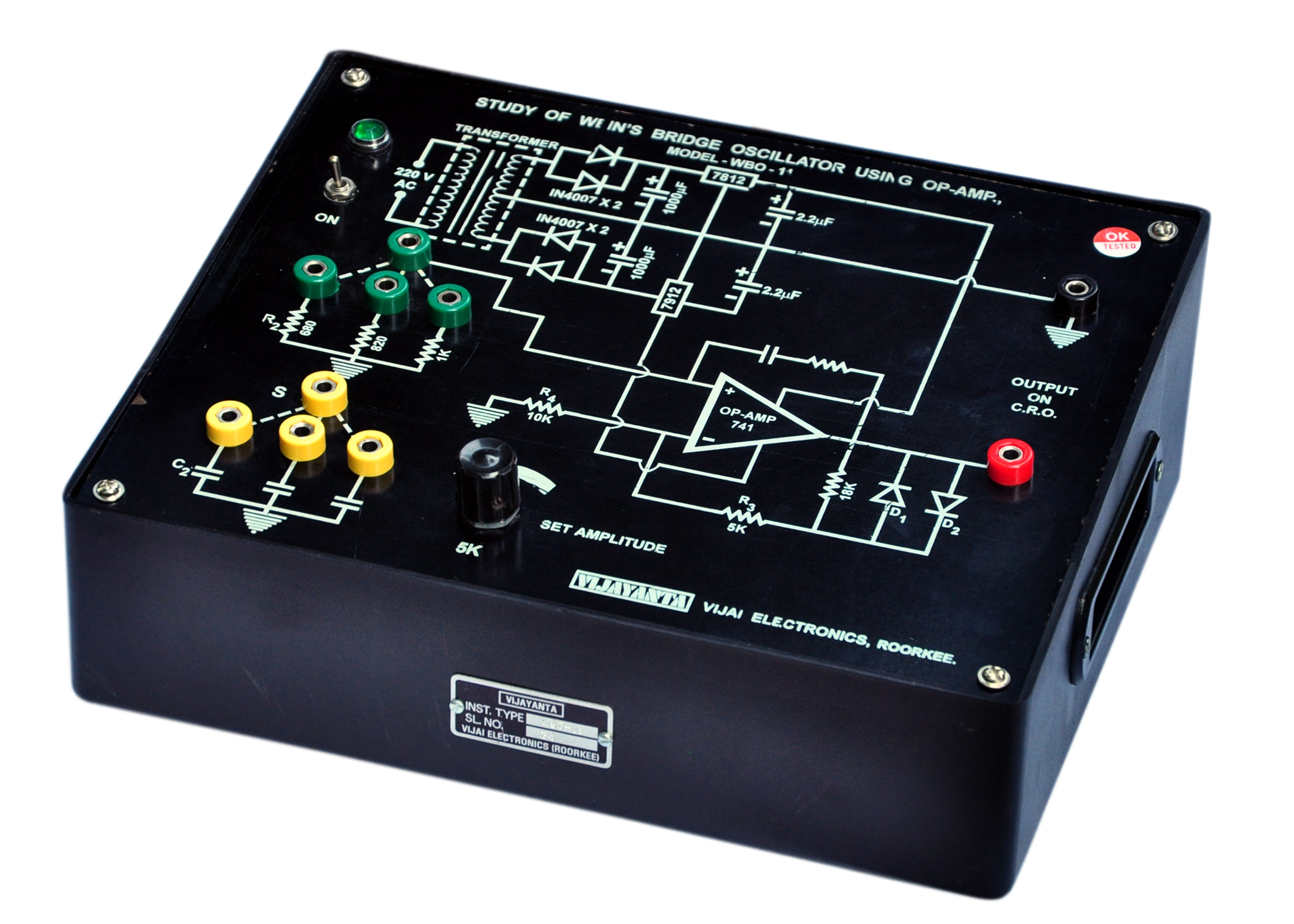

Study Of Wein Bridge Oscillator using Op-Amp. IC-741 (WBO-11)



  • Circuit  is  engraved  or  screen  printed  on  a  decorated  bakelite  sheet  to  facilite  better  on  clear  understanding.
  • A  complete  working  manual  containing  theory,  circuit  details  and  operating  procedure  is  supplied  with  the experimental  board.
  • Stackable  type  connecting  leads  are  supplied  with  the board  for  easy  and  perfect  inter  connections.
  • Fixed  output  DC Regulated  Power  Supply  of  ± 15 Volt  builtin.
  • The  circuit  diagram  of  oscillator is  provided  on  the  front  panel.
  • Weight : 2Kg Approximately
  • Dimension : 210mm ×280mm × 82mm


  1. Study  of  Wein  Bridge  Oscillator  using  Op – Amp. (I.C. – 741).


  1. A  General  purpose  Dual  Trace  C.R.O.
  2. Frequency  Counter.
  3. Patch  Cords.

Note : There may be any change in specification due to continuous R & D without notice.
