Features:

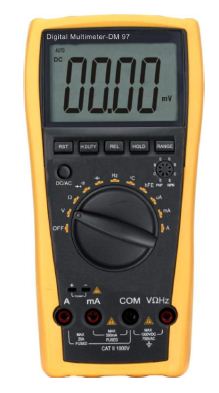

· 3¾ Digital Multimeter
· 4000 Counts Large LCD Display with Auto/Manual Range
· No Power-OFF under natural operation
· Data Hold, Max. / Min. Value Hold
· Capacitance, Frequency / Duty Cycle, Temperature and Transistor Test
Technical Data :
|
Basic Functions
|
Range
|
Basic Accuracy
|
|
DC Voltage
|
0.1mV ~ 1000V
|
± (0.5% + 4 digit)
|
|
AC Voltage
|
0.1mV ~ 750V
|
± (0.8% + 6 digit)
|
|
DC Current
|
0.1uA ~ 20A
|
± (1.0% + 5 digit)
|
|
AC Current
|
0.1uA ~ 20A
|
± (1.5% + 5 digit)
|
|
Resistance
|
0.1~ 40MΩ
|
± (0.8% + 2 digit)
|
|
Capacitance
|
10pF ~ 200uF
|
± (3.5% + 8 digit)
|
|
Frequency
|
0.1Hz ~ 30MHz
|
± (0.5% + 4 digit)
|
|
Celsius
|
-40oC～1000oC
|
± (0.8% + 4 digit)
|
|
hhFE (NPN or PNP)
|
0 ~ 1000
|
|
SPECIAL FUNCTIONS
|
Diode test
|
ü
|
Function Protection
|
ü
|
|
Transistor testing
|
ü
|
Input impedance
|
10MΩ
|
|
Continuity Buzzer
|
Lower 30 +10
|
Sampling Rate
|
3 times per second
|
|
Low Battery Display
|
Lower 2.4V
|
AC Frequency Response
|
40-400Hz
|
|
Auto Power OFF
|
Approx. 30 min.
|
Power
|
F3V AAA
|
Standard Accessories : Test Leads, Holster, Manual, TP 01 Temperature Probe Bead type
Dimension : 185(H) x 93(W) x 35(D)mm
Note: - There may be any change in specification due to continuous R & D without notice.
