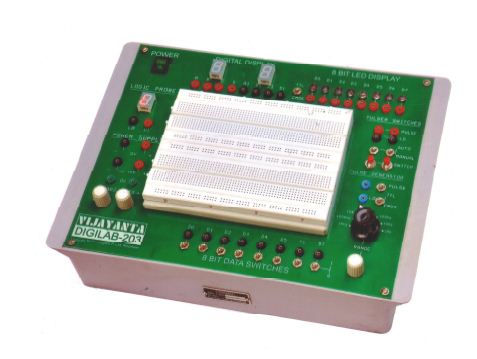

DIGITAL TRAINER KIT (ADVANCE MODEL) DIGILAB203AD
GENERAL DESCRIPTION:
This experimental board offers a great facility for digital circuit experiments. It is very useful in digital
laboratories for performing digital experiments in Colleges, Universities and also very useful in testing
circuit and making projects related to digital electronics.
FEATURES:
** Self Contained and easy to operate.
** Functional blocks indicated on board mimic.
** Solder less Bread Board.
** On Board DC Power Supply, 1 MHz Pulse
Generator with TTL/CMOS mode.
** Pulsar Switches, 10 – bit data switches.
** Bicolor LED display, Builtin Logic probe.
** BCD to Seven Segment Display.
** CMOS / TTL outputs.
** Overlay System.
