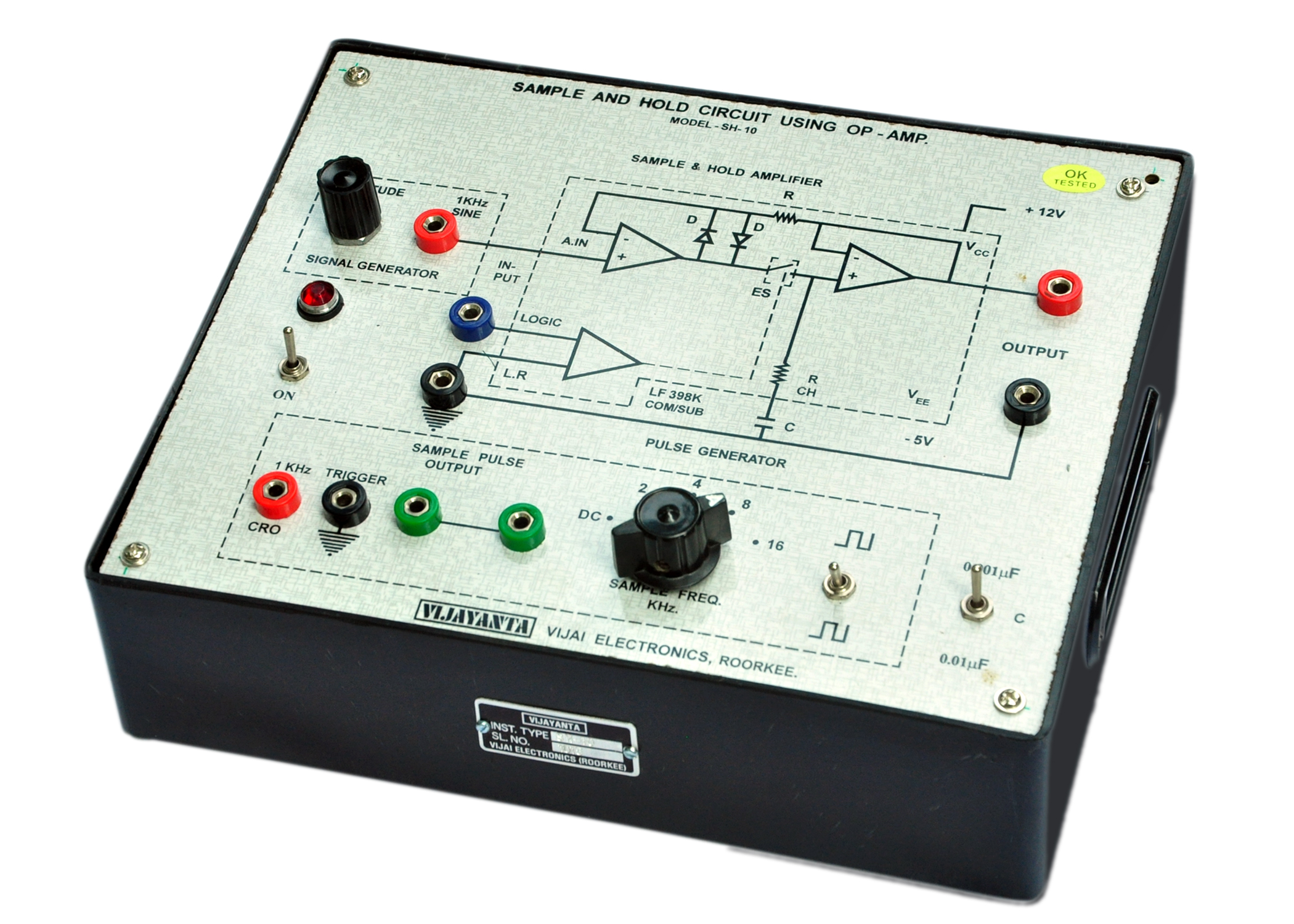

Sample & Hold Circuit using op-Amp (SH-10)
![](/Upload/image/SH%20-%2010.JPG)
FEATURES :
-
Circuit is engraved and components are mounted on the top of the decorated bakelite sheet to facilitate better and clear understanding.
-
Builtin Regulated and short circuit proof ± 12 Volt I.C. Power Supply suitable to the experimental board.
-
A complete working manual containing theory, circuit details and operating instruction provided.
-
Stackable type connecting leads suitable to the terminals are supplied with the board for easy inter – connections and longer working life of the terminals.
-
Fixed Frequency Sample / Hold Clock Signal for Switch is builtin.
-
Weight : 2 Kg Approximately
-
Dimension : 210mm × 280mm × 82mm
EXPERIMENTS :
-
Study of SAMPLE AND HOLD Circuit using Op – Amp.,
OTHER APPARATUS REQUIRED :
-
A General purpose C.R.O., Model – 201. To see the waveform shape. (“Scientech” make.)
-
A. F. Oscillator, Model – 712.
Note: There may be any change in specification due to continuous R & D without notice.
