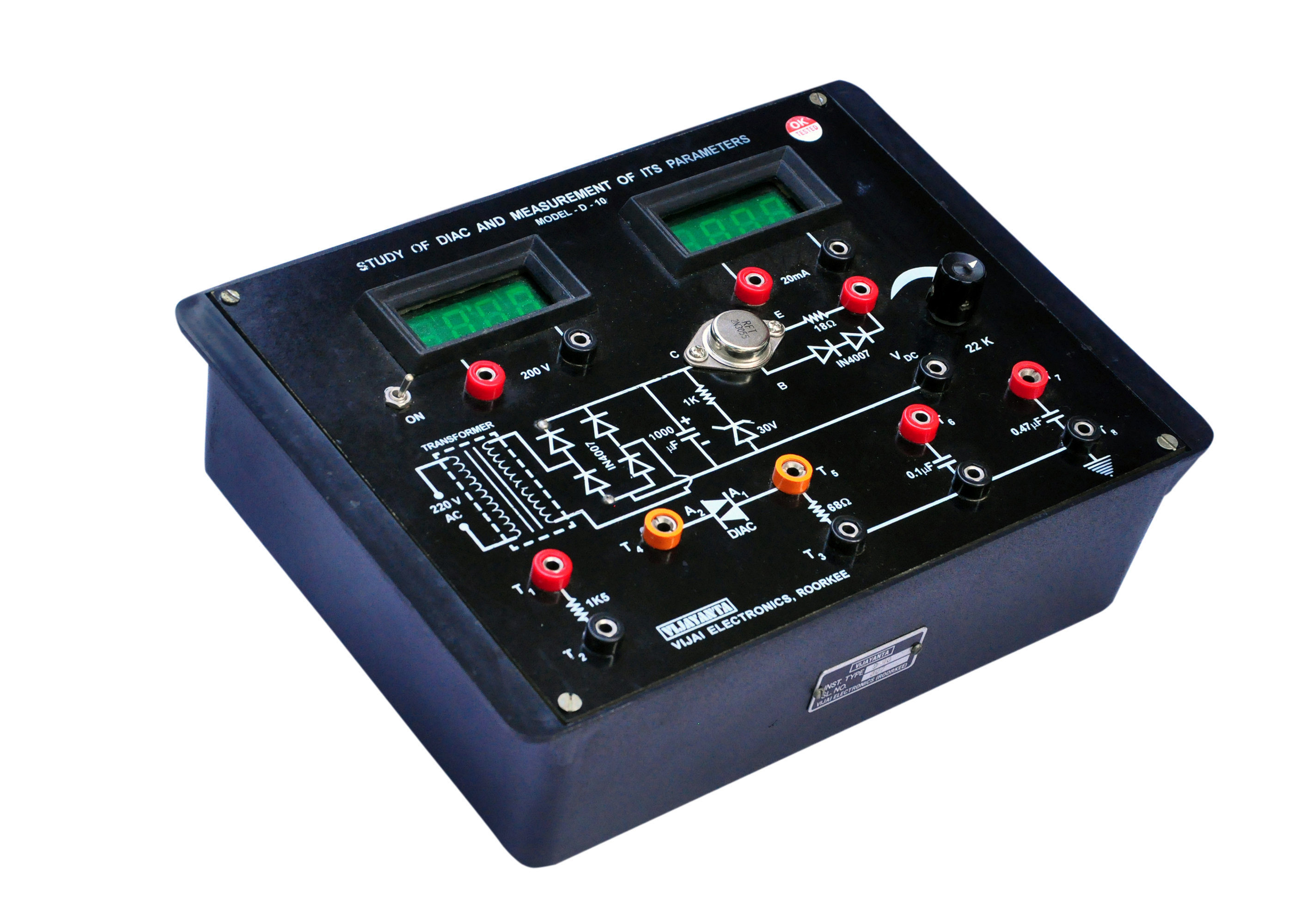

Characteristics of Bidirectional Diode Thyristor (DIAC) and measurement of its parameters, Model: D – 10

FEATURES:

• Builtin   regulated,   short  circuit  proof  power  supply  suitable  to  the  experimental  set – up.
• Circuit  is  drawn  on  a decorated  bakelite  sheet to  facilitate  better  and  clear  understanding.
• A  complete  working  manual  containing  operating  instruction,  theory  and  circuit  details  will  be  supplied  alongwith  experimental  set - up.
• Stackable  type  patch  cords  suitable  to  the  terminals  are  provided  with  the  board  for  easy  interconnections  and  longer  working  life  of  the  terminals.
• 50,  Hz  step  down  A.C.  Signal  for  both  anode  and  gate  are  builtin.
• Both  AC  and  DC  control  of   TRIAC  firing  can  be  studied.
• Weight : 1.5Kg Approximately
• Dimension : 210mm × 280mm × 82mm

EXPERIMENTS  :

1. Current – Voltage  (Forward  and  Reverse)  Characteristics  of  the  DIAC.
2. Measurement  of  forward / reverse  break – over  voltage.
3. Measurement  of  Delta  V.
4. DIAC  as  Saw  Tooth  Generator.

APPARATUS  REQUIRED  :

1. D.C.  Digital  Voltmeter.                         0 – 25,  Volt.                             01  No.
2. D.C.  Digital  Milliammeter.                                0 – 25, mAmp.              01  No.
3. Digital  Multimeter,  Model – 4011.  (“Scientech”  make.)
4. A  General  purpose  C.R.O.,  Model – 201.  (“Scientech”  make.)

NOTE: There may be any change in specification due to continuous R & D without notice.



Click below to view Catalogue
