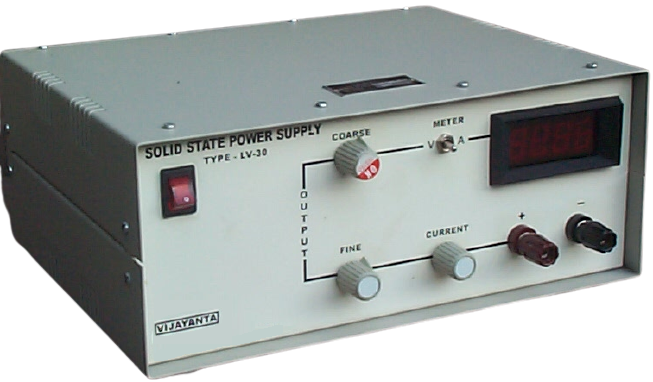

DC REGULATED POWER SUPPLY (0 - 32V / 30A)

     Model: LV 30/30A

echnical  Specification : -

• INPUT VOLTAGE                       :   230V ± 10% AC 50 Hz
• OUTPUT VOLTAGE                   :   Continuously Variable with Coarse & Fine Control
• OUTPUT CURRENT                  :   Settable with Coarse & Fine Control
• LOAD REGULATION (CV)         :   ± 0.05 % ± 3mV From no load to full load
• LOAD REGULATION (CC)         :   + 0.05% + 1mA From no load to full load
• LINE REGULATION (CV)           :   ± 0.01 % ± 3mV for +10% variation input voltage
• LINE REGULATION (CC)           :   + 0.01% + 1mA for +10% variation input voltage
• RIPPLE                                       :   Less than 1 mV
• METER                                        :   Two Digital meters to monitor the output voltage & current
• PROTECTION                       :   Against short circuit & over load

For More Details Download Catalogue.
